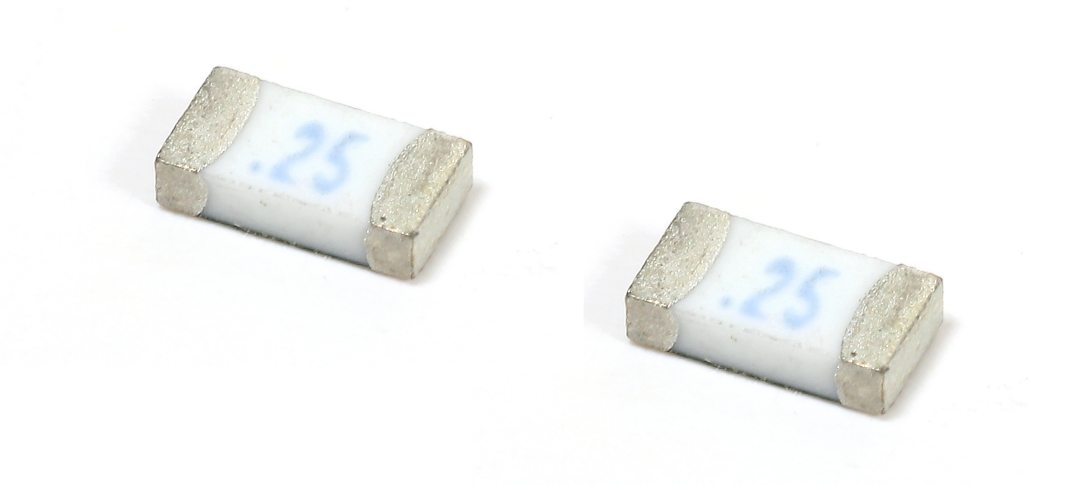

121 series fuse offers subminiature size, high performance, reliability and high quality.
Has wide application range, is mainly used in mobile phones, DVD players, battery, hard disk, digital camera, etc.
Time - current features: Fast-Acting(F)
Standard:UL248-14
Materials:Substrate: Ceramic,Termination: Silver over-plated with nickel and Tin
Operating Temperature:-55℃ to +150℃
Storage Conditions:+10℃ to +60℃
Relative humidity:≤75% yearly average,Without dew, maximum 30 days at 95%
Soldering Parameters:260℃.≤10 sec (Wave Soldering) 350℃.≤3 sec (Hand Soldering)
Soldering Peak:260℃. 10 sec. 280℃. 5 sec. (IEC 60068-20)
Approvals:cURus
Breaking Capacity:50A @ 32V AC,50A @ 63V DC,50A @ 32V DC,150A @24V DC
