Medium and high voltage products, 500VAC/DC, are mainly used for motor, electronic control protection, server power supply, high voltage circuit protection, charging piles and other circuit protection in frequency conversion circuits; 660VAC/DC, 1000VAC/DC are mainly used for charging piles and multimeters.
Time-Current characteristic: Fast-Acting (F)
Breaking Capacity: 500A@1000VAC
Standard: UL 248-1
Approvals: cURus

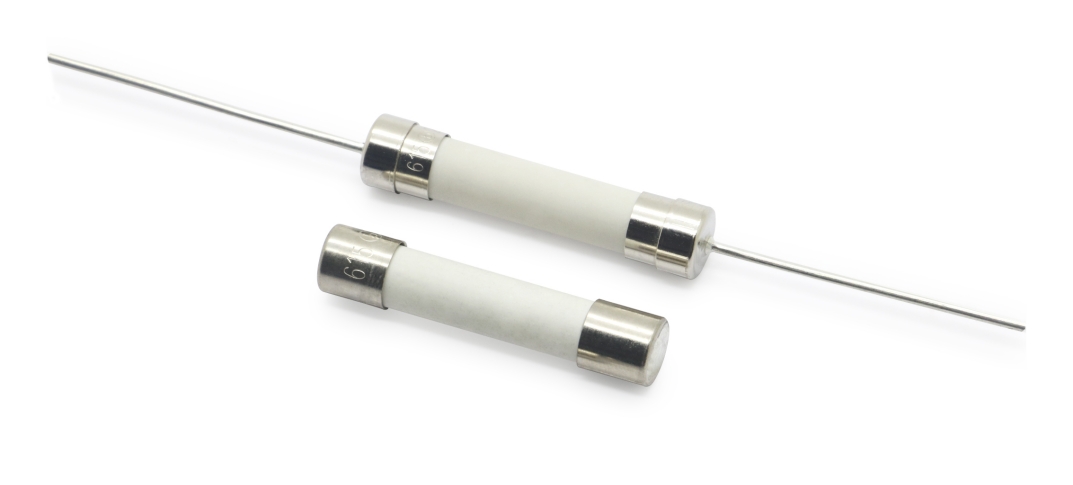

Material: Tube-ceramic, metal cap-nickel plated brass, lead cap-nickel plated cap, tinned copper wire
Operation Temperature: -55℃ ~ +125℃
Weldability: 260℃≤5 seconds(wave-soldering), 350℃≤3 seconds(hand welding)
Soldering Peak: 260℃, 10 seconds, /280℃, 5 seconds
Storage conditions: +10℃ ~ +60℃,average annual relative humidity ≤75%,dry maximum value of 30 days is 95%
