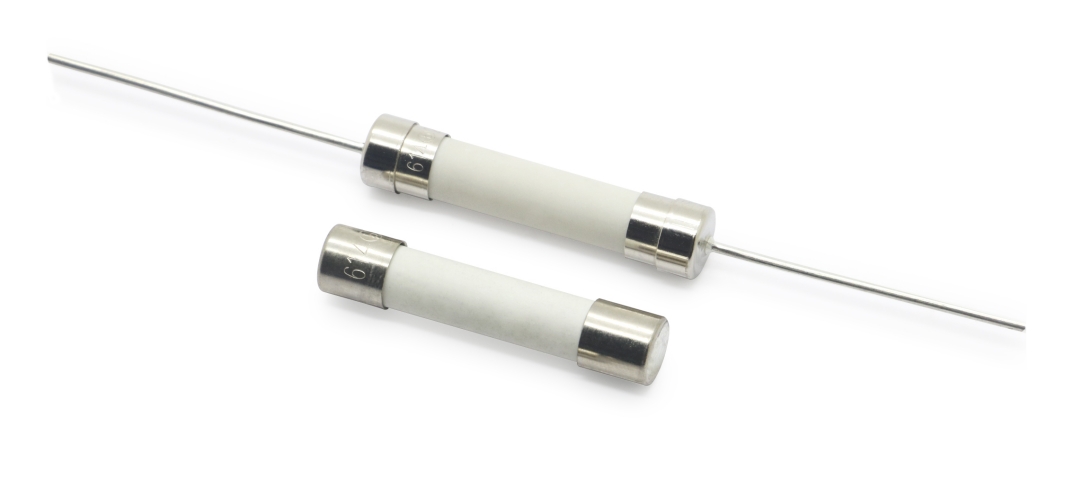

Low voltage 250VAC, mainly used in air conditioner electric control board, UPS power supply, industrial products
Time-Current characteristic: Time-Lag (T)
Breaking Capacity: 35A@250VAC,100A@250VAC,200A@250VAC,400A@125VAC,10KA@125VAC
Standard: UL 248-1
Approvals: cULus,cURus,PSE
Material: Tube-ceramic, metal cap-nickel plated brass, lead cap-nickel plated cap, tinned copper wire
Operation Temperature: -55℃ ~ +125℃
Weldability: 260℃≤5 seconds(wave-soldering), 350℃≤3 seconds(hand welding)
Soldering Peak: 260℃, 10 seconds, /280℃, 5 seconds
Storage conditions: +10℃ ~ +60℃,average annual relative humidity ≤75%,dry maximum value of 30 days is 95%
