Betterfuseグループ»過電流保護部品»７シリ―ズヒュ―ズ

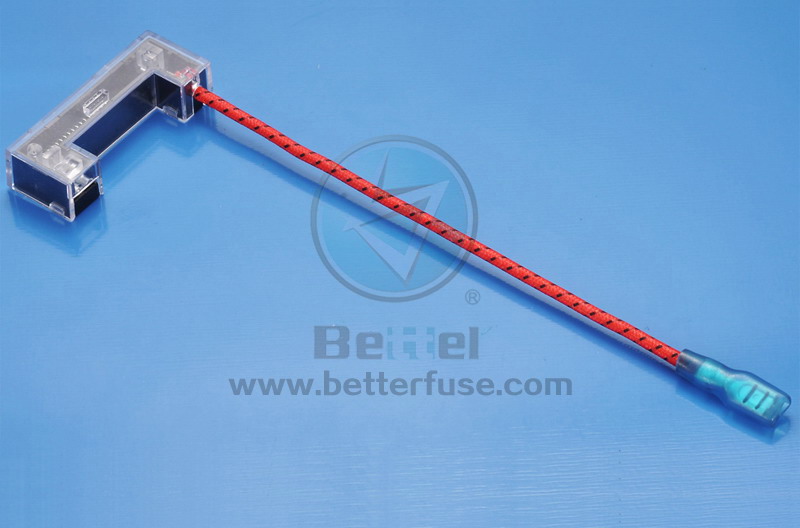

No.721/High Voltage Fuse
質問があれば？贝特支援グループを連絡ください
721 series high voltage fuse, mainly used in over-current protection circuits of microwave oven.
- 製品特性
- 技術センター
- 環境情報
Time - current features： Storage conditions：+10℃—+60℃
Fast action(F) On average relative humidity a year≤75%
Standard：IEC-60127-2/Ⅳ Dry， 30 days maximum 95%
Material Vibration Resistance: 24 cycle /15min(EN 60068-6)
Enclosure：Makrolon Amplitude: 10 to 60 HZ in the amplitude of 0.75 mm
Terminal: red nylon line Acceleration: 60-2000 hz in 10 g accelerationSpring: silver plated brassWorking temperature:：-55℃—+125℃
