Betterfuseグループ»過電流保護部品»５シリ―ズヒュ―ズ

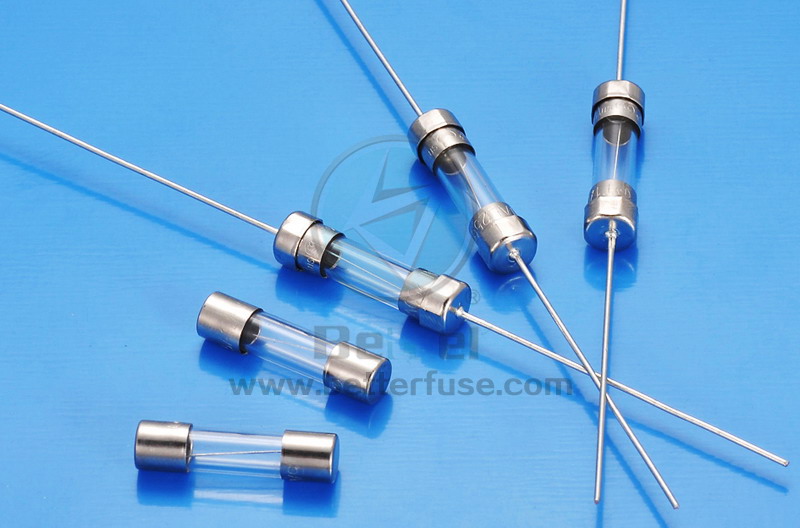

No.511/5*20mm
質問があれば？贝特支援グループを連絡ください
Suitable for 250VAC or less than 250VAC voltage circuits, mainly used in home appliances, consumer electronics, adapters, PC power supplies and other computer peripheral products
- 製品特性
- 技術センター
- 環境情報
Time - current features：Fast-Acting (F)
Breaking Capacity: 35A@250VAC，100A@125/250VAC，200A@250VAC，10KA@125VAC
Standard：UL248-14
Approvals: cURus, PSE
Materials：shell-glass tube, metal cap-nickel-plated brass, lead cap-nickel-plated cap, tin-plated copper wire
Operating Temperature：-55℃ to +150℃
Soldering Parameters：260℃.≤10 sec (Wave Soldering)，350℃.≤2 sec (Hand Soldering)
Soldering Peak:260℃. 10 sec.，280℃. 5 sec.
Storage Conditions：+10℃ to +60℃
Relative humidity:≤75% yearly average Without dew, maximum 30 days at 95%
Breaking Capacity: 35A@250VAC，100A@125/250VAC，200A@250VAC，10KA@125VAC
Standard：UL248-14
Approvals: cURus, PSE
Materials：shell-glass tube, metal cap-nickel-plated brass, lead cap-nickel-plated cap, tin-plated copper wire
Operating Temperature：-55℃ to +150℃
Soldering Parameters：260℃.≤10 sec (Wave Soldering)，350℃.≤2 sec (Hand Soldering)
Soldering Peak:260℃. 10 sec.，280℃. 5 sec.
Storage Conditions：+10℃ to +60℃
Relative humidity:≤75% yearly average Without dew, maximum 30 days at 95%
