Surface-Mount Resettable
No.BNF series 0603 N...
SMD0603；
Terminal Pad Materials：Tin-Plated Nick
Terminal Pad Materials：Tin-Plated Nick
Holding Current：0.04A-0.5A, @25℃
Operating Temperature： -40℃~ 85℃
Maximum Voltage：6V-24V
No.BLF series 0603 S...
SMD0603； Terminal Pad Materials：Tin-Plated Nickle-
Holding Current：0.35A-3.0A, @25℃
Operating Temperature： -40℃~ 85℃
Maximum Voltage：6V-9V
No.BNP series 0805 N...
SMD0805；
Terminal Pad Materials：Tin-Plated Nick
Terminal Pad Materials：Tin-Plated Nick
Holding Current：0.05A-1.1A, @25℃
Operating Temperature： -40℃~ 85℃
Maximum Voltage：6V-24V
No.BLP series 0805 S...
SMD0805；
Terminal Pad Materials：Tin-Plated Nick
Terminal Pad Materials：Tin-Plated Nick
Holding Current：0.75A-4.0A, @25℃
Operating Temperature： -40℃~ 85℃
Maximum Voltage：6V-12V
No.BNN series 1206 N...
SMD1206；
Terminal Pad Materials：Tin-Plated Nick
Terminal Pad Materials：Tin-Plated Nick
Holding Current：0.05A-2A, @25℃
Operating Temperature： -40℃~ 85℃
Maximum Voltage：6V-60V
No.BLN series 1206 S...
SMD1206；
Terminal Pad Materials：Tin-Plated Nick
Terminal Pad Materials：Tin-Plated Nick
Holding Current：1.5A-7.5A, @25℃
Operating Temperature： -40℃~ 85℃
Maximum Voltage：6V-12V
No.BNU series 1210 N...
SMD1210；
Terminal Pad Materials：Tin-Plated Nick
Terminal Pad Materials：Tin-Plated Nick
Holding Current：0.05A-2.0A, @25℃
Operating Temperature： -40℃~ 85℃
Maximum Voltage：6V-60V

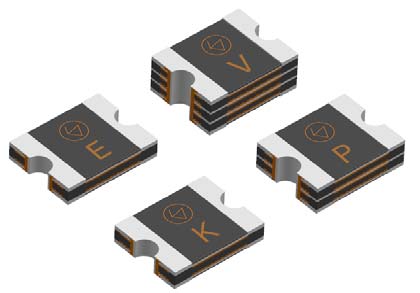

No.BLU series 1210 S...
SMD1210；
Terminal Pad Materials：Tin-Plated Nick
Terminal Pad Materials：Tin-Plated Nick
Holding Current：1.5A-8.0A, @25℃
Operating Temperature： -40℃~ 85℃
Maximum Voltage：6V-12V
No.BNM series 1812 N...
SMD1812；
Terminal Pad Materials：Tin-Plated Nick
Terminal Pad Materials：Tin-Plated Nick
Holding Current：0.1A-3A, @25℃
Operating Temperature： -40℃~ 85℃
Maximum Voltage：8V-60V

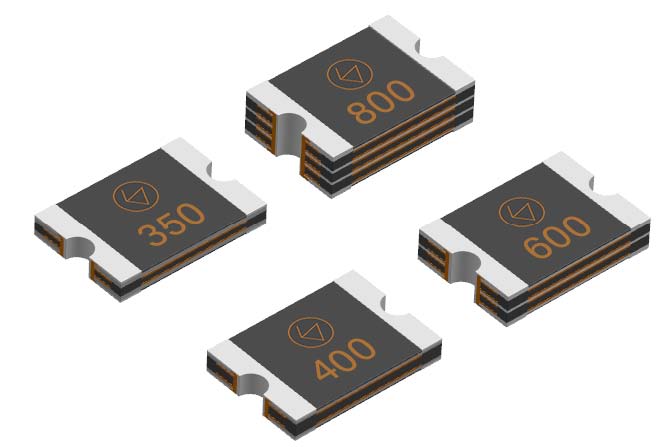

No.BLM series 1812 S...
SMD1812；
Terminal Pad Materials：Tin-Plated Nick
Terminal Pad Materials：Tin-Plated Nick
Holding Current：2.6A-9.0A, @25℃
Operating Temperature： -40℃~ 85℃
Maximum Voltage：6V-12V

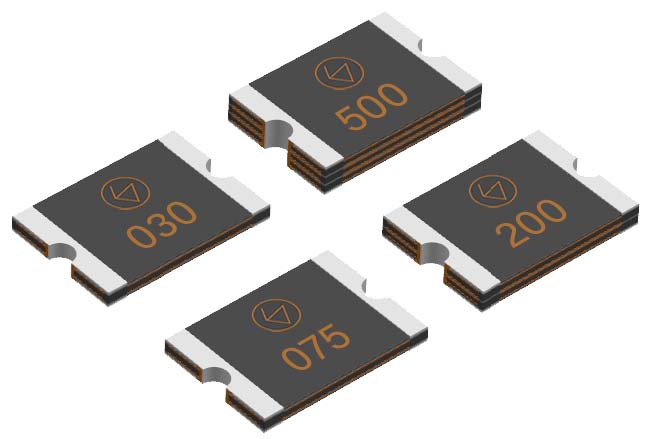

No.BNL series 2920 N...
SMD2920；
Terminal Pad Materials：Tin-Plated Nick
Terminal Pad Materials：Tin-Plated Nick
Holding Current：0.3A-5A, @25℃
Operating Temperature： -40℃~ 85℃
Maximum Voltage：6V-60V

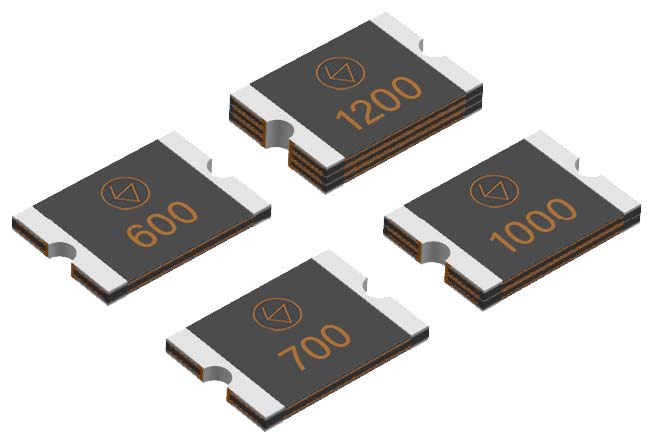

No.BLL series 2920 S...
SMD2920；
Terminal Pad Materials：Tin-Plated Nick
Terminal Pad Materials：Tin-Plated Nick
Holding Current：5A-12A, @25℃
Operating Temperature： -40℃~ 85℃
Maximum Voltage：16V-24V
