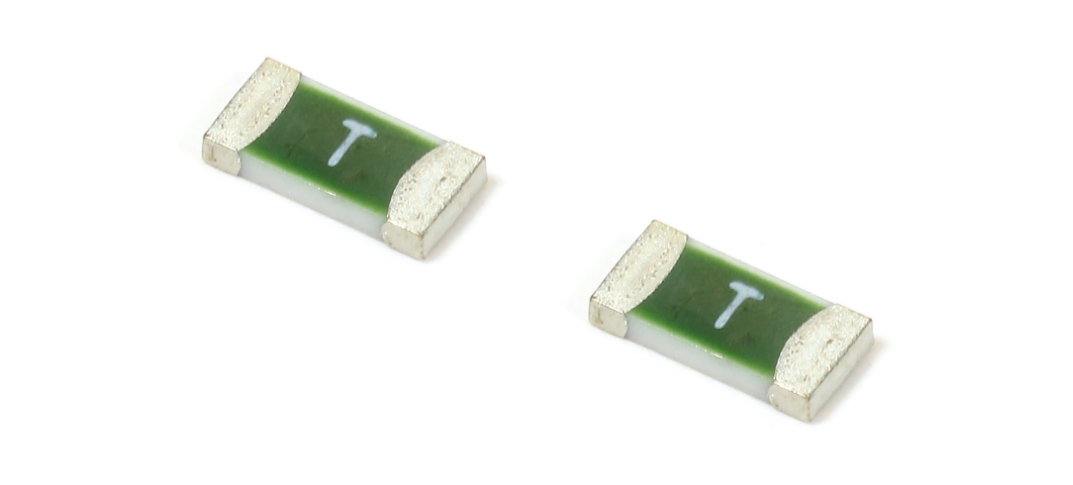

Time-Current characteristic: Time-Lag(T)
Breaking Capacity: 50A@12Vac[1A~4A], 50A@63Vdc[1A~4A], 100A@12Vac[4.5A~5A], 100A@32Vdc[4.5A~5A]
Standard: UL 248-14
Approvals: cURus
Material: Basic material-ceramics, both ends-silver nickel plated and tin
Operation Temperature: -55℃ to +150℃
Weldability: 260℃≤30 seconds(infrared reflow-soldering), 260℃≤10 seconds (wave-soldering)
Soldering Peak: 260℃, 10 seconds, /280℃, 5 seconds
Storage conditions: +10℃ ~ +60℃,average annual relative humidity ≤75%,dry maximum value of 30 days is 95%
